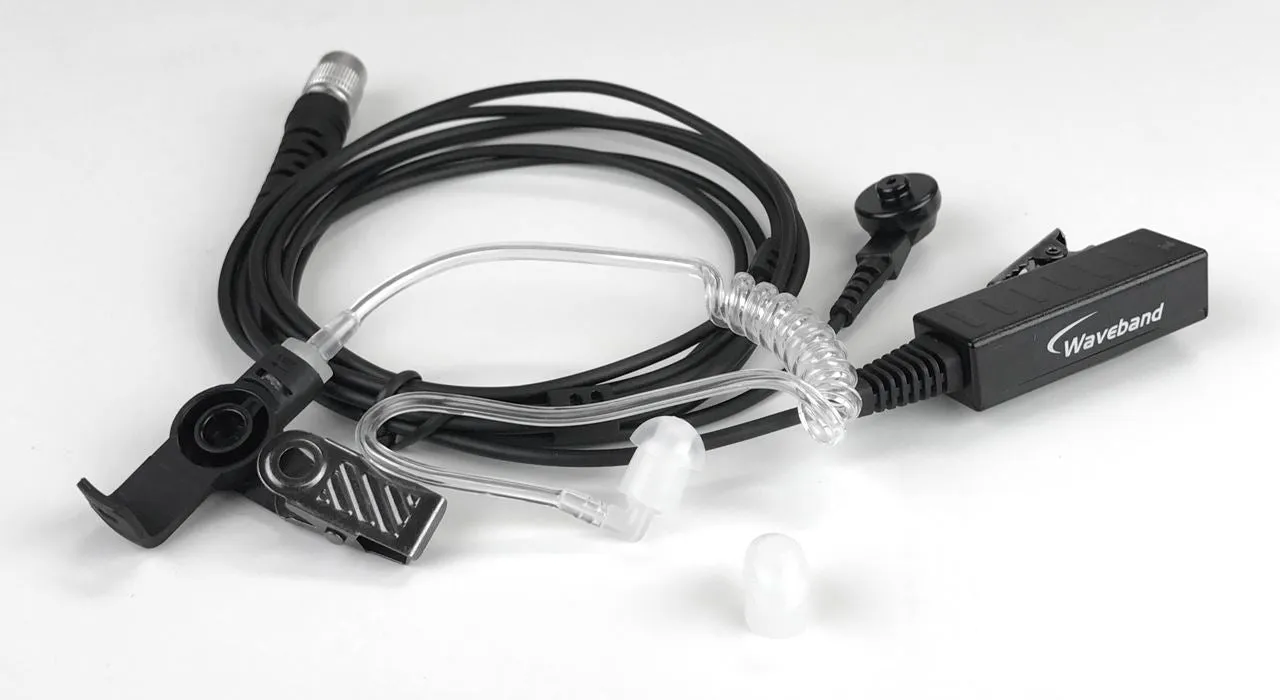

Two-wire surveillance kit with Hirose quick disconnect for easy on and off from the two-way radio. Includes clear acoustic tube earpiece. Compatible with genuine OEM audio adapters and Waveband audio adapters.

Kit Requires a quick-release adapter!

Below is a list of popular compatible quick release adapters for this two wire surveillance kit.

Quick Release Adapter Part#WV1-10335X for use with Motorola ASTRO XTS 5000, XTS 3500, XTS 3000, XTS 2500, XTS 1500, MT1500, MTS2000, HT1000, MTX8000, MTX9000, PR1500 Portable Radios.

for XTS 5000, XTS 3500, XTS 3000, XTS 2500, XTS 1500

 for Harris P5300, P5400, P5500, XG-75 and others

 for APX6000, APX7000, APX8000, XPR7550, XPR6550, and other APX and MOTOTRBO radios

for NX-410, NX-411, NX-5200, TK-2180, TK3180, TK480, TK481, TK290, TK390, TK380, TK 280 and others.

CABLING

Sheathing: Polyurethane
Cabling: Diameter 4.5mm, Earphone cable 3.0mm

SPEAKER
Impedance: 250 -50 Ohms
SPL: 97 -3dB

MICROPHONE
Type: Piezoelectric Accelerometer Microphone
Impedance: 250 - 50 Ohm
Sensitivity: 97 - 3dB

MECHANICAL
Axial Pull at Microphone: 15lbs
Axial Pull at PTT: 35lbs
Axial Pull at UDC: 35lbs

ENVIRONMENTAL
Operating Temperature: -30 to 75 Celsius
Storage Temperature: -40 to 85 Celsius
RoHS Compliant

Guarantee
12-Months for manufacturer’s defects.

Equivalent to: Motorola ZMN6032, Motorola ZMN6032A, Otto V1-10171.

Upgrade to New Comply™Foam Tips
A100 Situational Awareness and N-100 Total Isolation allow the ear to breathe, eliminating discomfort and ear fatigue, while providing unmatched noise isolation. Patented “Dual Layer” technology dramatically increases retention, providing a secure in-ear fit for active users. Utilizing high-tech viscoelastic memory foam, the Comply™Foam Tips are activated by body heat, becoming ultra-soft and remaining comfortable during extended use. Compatible with ALL barbed acoustic tube communication earpieces
