About:

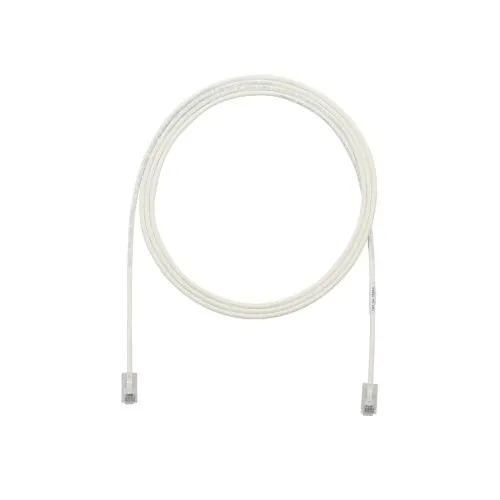

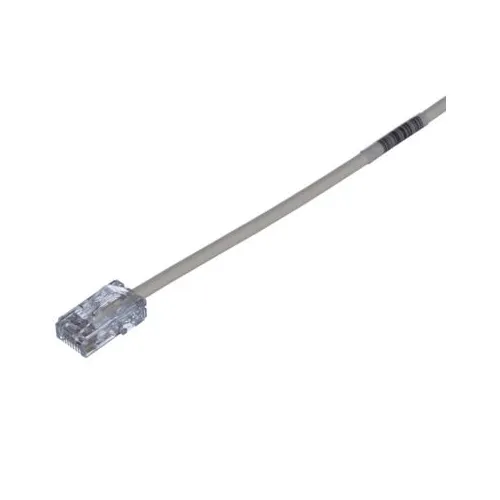

• The TX5e Cat 5e UTP Patch Cord is a 1-Foot, 0.150-inch (3.8mm) diameter, Off-White cord constructed of 28 AWG, unshielded, twisted pair, stranded, CM cable with Pan-Plug modular plugs.
• Its compact 28 AWG design simplifies installation and management.
• The tangle-free latch prevents snags and ensures a fast release, streamlining moves, adds, and changes.
• Enabled with RapidID, the product has pre-installed barcodes for simple port mapping using RapidID software.

Also Known As:

Patch Cord, Patch Cable, Ethernet Cable, Network Cable, LAN Cable, Twisted Pair Cable.

Specification:

• Product Type: Patch Cord
• Conductor Gauge (AWG): 28
• Conductor Gauge (kcmil):  0.16
• Performance Level: Category 5e
• Conductor Type: Stranded
• Cable Construction: U/UTP
• Patch Cord Type: Unshielded
• Plug Housing Material: Polycarbonate
• Jacket Material: LSZH Material
• Connector 1 Type: Modular Plug
• Connector 2 Type: Modular Plug
• Overall Length (ft): 1
• Sub Brand: Pan-Net
• Nominal Cable Outside Diameter (In): 0.149
• Wiring Scheme: T568A
• Maximum Operating Temperature (°F): 140
• Minimum Operating Temperature (°F): 14
• Boot Color: No Boot
• Color: Off White
• Flammability Rating: Dual Rated (CM/LSZH)
• Plug Type: 8 Position
• UPC: 07498341766

Features:

• 100% performance tested for wire map, NEXT and return loss, Centered de-embedded plug, Integral pair manager, Patented tangle-free latch
• Equipped with RJ45 connectors on both ends, ensuring compatibility with standard Ethernet ports on networking devices.
• Flexible design facilitates easy routing and installation within network cabinets, racks, and other infrastructure.
